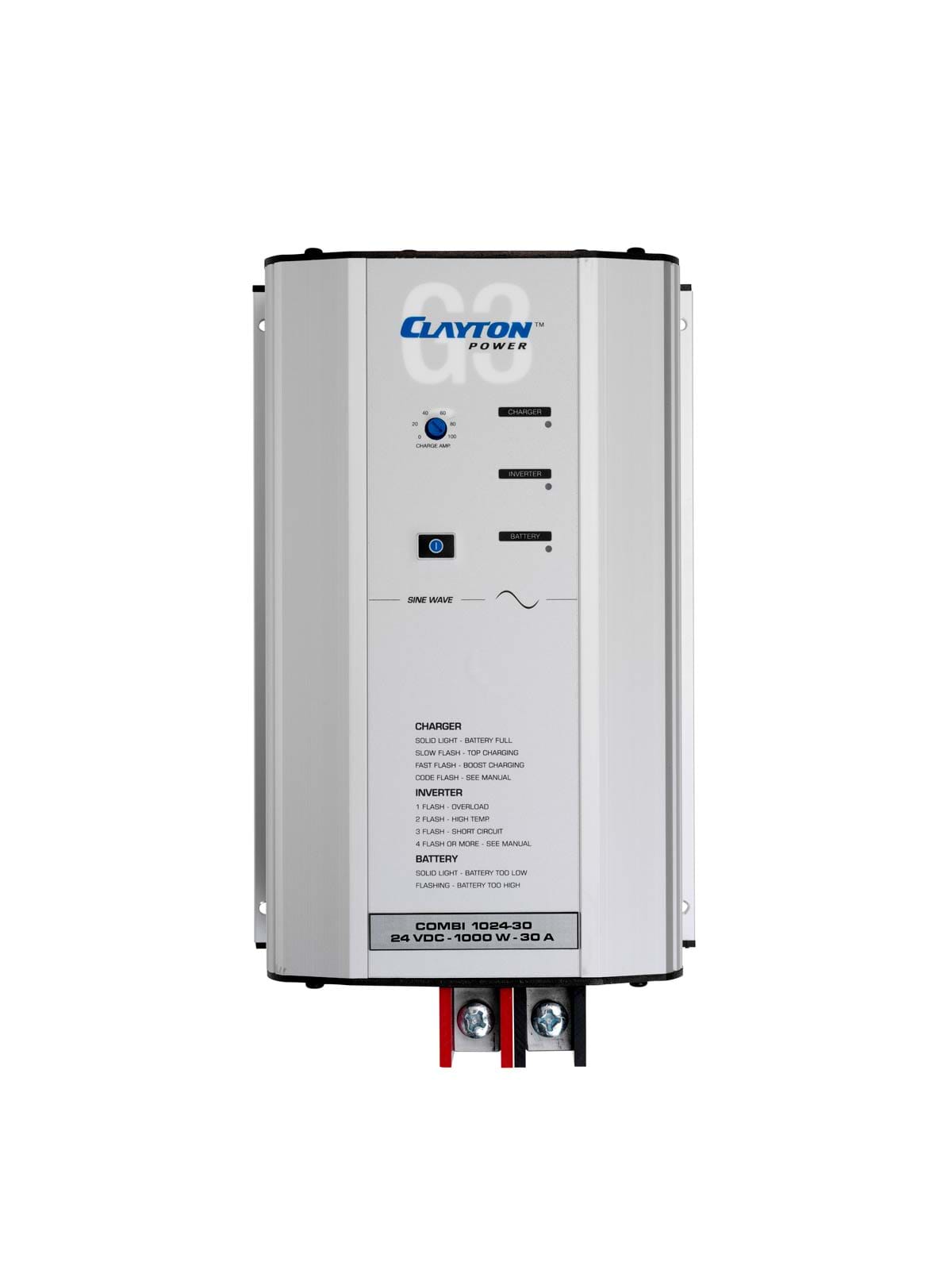

G3 Inverter/Charger 1024–30
Model Number: G3 Combi 1024–30
SKU: CC1204
24V - 230V Combined Inverter/Charger. Powers 1200W and 2000W in peak.
230 V/50 Hz output
Peak: 2000 W
>15 minutes: 1200 W
Power: 1000 W
Charging
Mains: 30A/24V
£ 935.00 excl. VAT
£ 1,122.00 Incl. 20% VAT
Specifications
| Inverter/Charger model: | G3 1024-30 | |
| Continuous output power (-20°C to +50°C): | 1000W | |
| Output power surge (15 min.): | 1200W | |
| Output power surge (10 sec.): | 1500W | |
| Output power surge ( 1 sec.): | 2000W | |
| Nominal input voltage: | 24VDC | |
| Max input voltage: | 30VDC | |
| Low battery voltage cut-off (Slow 3 sec.): | 21VDC | |
| Low battery voltage cut-off (Fast <10 mS): | 18VDC | |
| No load power consumption: | 10W | |
| Voltage for switch ON (after cut-off): | 25,5VDC | |
| Max charge current (adjustable) | 0 - 30A | |
| Charge current reduction @ 50°C | 0% | |
| Charge current reduction @ 60°C | 15% | |
| Charge current reduction @ 80°C | 50% | |
| Boost charge voltage (factory pre-set) | 28.8VDC | |
| Float charge voltage (factory pre-set) | 27VDC | |
| Dimensions (mm): | 198x336x118 | |
| Weight: | 7,5kg | |
| Package dimensions WxHxD (mm) | 460x260x275 | |
| Package weight (total) | 8,6kg |
